Engineering / Case Study For Stress Analysis

Stress Analysis

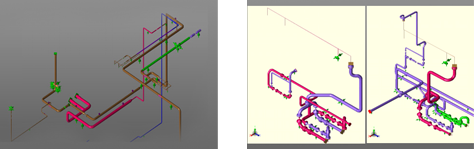

Project – 50 MW thermal Power plant One of the major client in India Scope Of work -: High Pressure and temperature Lines analysis
Scope -:
• Main steam line analysis
• Turbine Extraction line Analysis
• Turbine combined analysis as pet NEMA SM 23
• BFP suction and Discharge
• Other Process Steam lines

Deliverables -:
• Modeling and analyzing the Line in CAESAR II Software
• The nozzle loads for the equipment as compare to code
• Special support drawing as per requirement
• Design, selection and detailing drawing of supports
• Stress reports
• Squad checking of civil structural and equipment drawings
• Safety relief valve calculation, trunion calculation
• Stress analysis report & stress isometrics

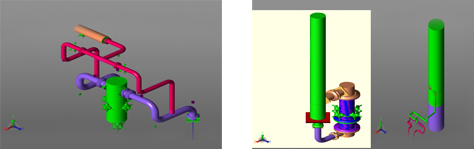

Project – 60 KLPD Distillation plant Of one of the major client from Australia Scope Of work -: Stress critical Lines analysis As per Given Criteria
Scope -:
• Pump & Compressor
• Heat Exchangers
• Column & Reactors
• Reboiler
• Tower
• Turbine
• Rack lines

Deliverables -:
• Modeling and analyzing the Line in CAESAR II Software
• The nozzle loads for the equipment as compare to code
• Special support drawing as per requirement
• Design, selection and detailing drawing of supports
• Stress reports
• Squad checking of civil structural and equipment drawings
• Safety relief valve calculation, trunion calculation
• Stress analysis report & stress isometrics

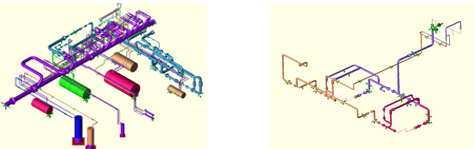

Project – 120 & 180 MW thermal Power plant One of the major client in India Scope Of work -: High Pressure and temperature Lines analysis
Scope -:
• Main steam line analysis
• Turbine Extraction line Analysis
• Turbine combined analysis as pet NEMA SM 23
• BFP suction and Discharge
• Other Process Steam lines

Deliverables -:
• Modeling and analyzing the Line in CAESAR II Software
• The nozzle loads for the equipment as compare to code
• Special support drawing as per requirement
• Design, selection and detailing drawing of supports
• Stress reports
• Squad checking of civil structural and equipment drawings
• Safety relief valve calculation, trunion calculation
• Stress analysis report & stress isometrics
